4L
  • Disinfection and sterilization

  • Safe and non-toxic

  • Fast and efficient

  • Energy saving and environmental protection

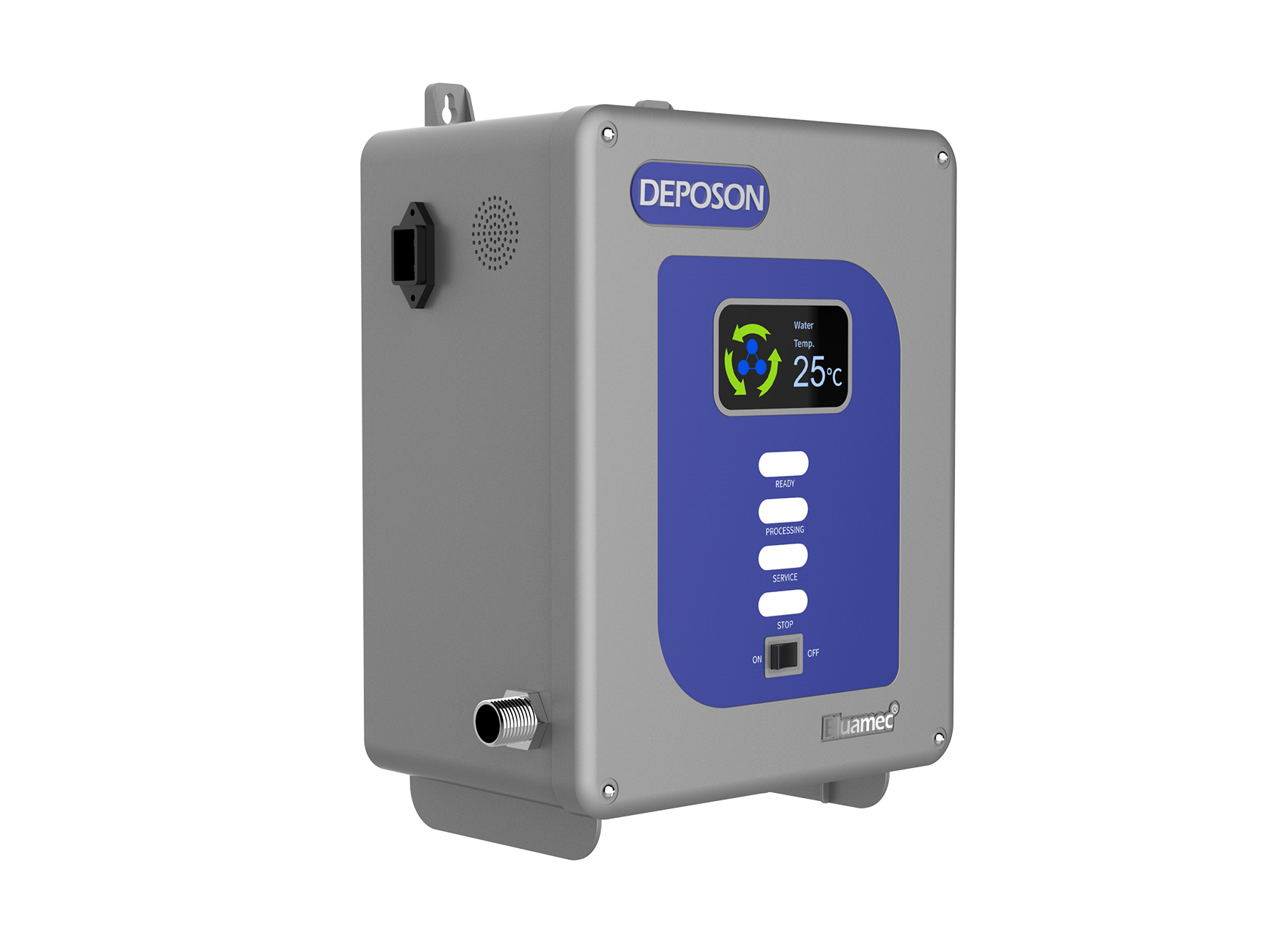

Blue Diamond Disinfection System
Model: DPS-BP/W-822

Blue Diamond Disinfection System is a multi-scenario commercial large-flow water treatment and disinfection system launched by Debaishun, providing one-stop
central integrated disinfection solutions for hospitals, commercial kitchens, commercial laundry, livestock breeding and other places.
  • Blue Diamond Core Technology​​​​​​​

  • Integrated waterway, ready to use

  • Broad spectrum sterilization and deep purification

  • Safe, reliable and efficient disinfection


Installation instructions


After installing a filter at the water inlet to ensure that the water quality is free of particulate impurities,
Just install this product and turn on the power.
When taking water, the product intelligently turns on and electrolytically reconstructs water molecules.
Using the water source has the functions of cleaning, disinfection and sterilization.

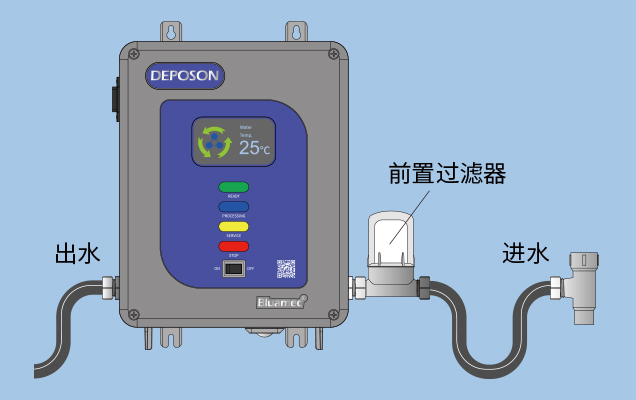

Installation diagram
This product is a commercial large-flow water treatment and disinfection system.
Can be used for hospitals, schools, nurseries, health care centers, commercial kitchens,
Commercial laundry, large-scale livestock breeding and other places
Provide one-stop central integrated cleaning and disinfection solutions.
Integrated waterway use



Specifications



model DPS-BPW-822 color

Technology gray

Flow range 0.6-4L/min size

299* 175.8* 367.5mm

net weight 3kg power 350W
input voltage AC220V 50/60Hz Water pressure resistant ≤0.6MPa
Waterproof level IPX5 Outlet size 4 points external tooth interface
Water inlet size 4 points external tooth interface Water quality requirements 15-200ppm municipal tap water
Water temperature requirements 4-40℃



Third-party authoritative test report

Application examples
