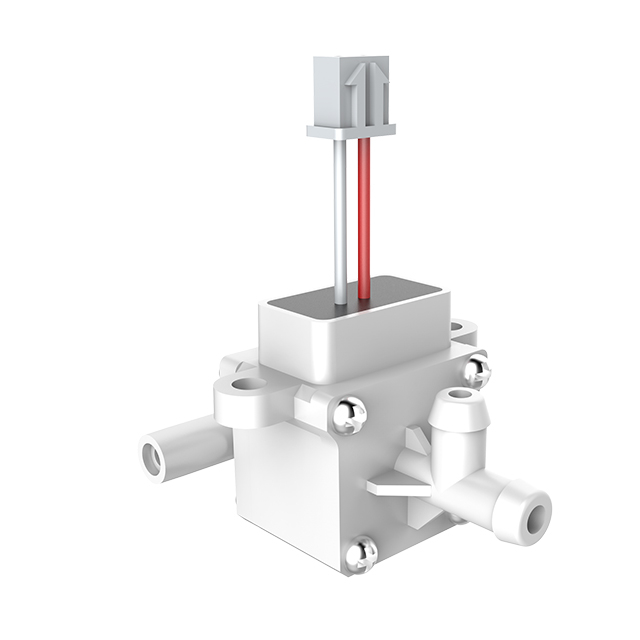

Ozone Generation Cell DPS-BP/W-001B

Product Description

德百顺Bluphin蓝钻豚芯系列产品


蓝钻发生器DPS-BP/W-001B



              PRODUCT INTRODUCTION

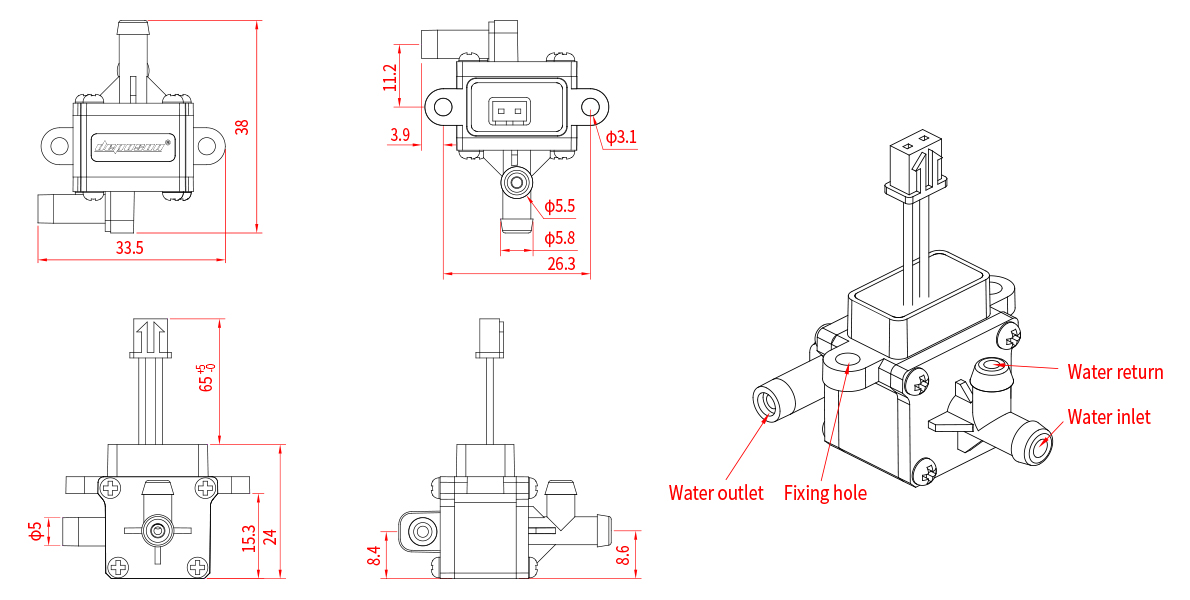

                          DIMENSIONS


W-001B线稿


                     TECHNICAL DATA


Bluphin

Model numberDPS-BP/W-001B

Order numberP001B

Cell dimension

L38*W33.5*H24(mm)

Net weight

10g±2g

Range of flow rate

60-300mL/min

Power cable spec

AWG24(red & white),L=65mm

Range of ozone   concentration

0.5-2.0ppm

Power plug

XH2.54 2pin plug

Input voltage

DC   8.5-22V

Lack water protector

No

Input current

0.2-0.5A

Water pressure

0.05-0.4MPa

Power

8W

Max water temperature

40℃(104℉)

Water inlet spec

1/4”,φ6.3mm

Suggested water quality

Clean tap water, Hardness ≤ 250 ppm CaCO3

Water outlet type

1/4”,φ6.3mm

Applicable driving board   No.

PCB001、PCB002

Water return hole spec

1/4”,φ6.3mm

Generator fixing method

Fix with screws

Suggested water pipe

Suggested water pipe,φ6*3(mm)

Package spec
