Ozone Generation Cell DPS-BP/W-002A

Availability:
sharethis sharing button

Product Description

德百顺Bluphin蓝钻豚芯系列产品


蓝钻发生器DPS-BP/W-002A



                  PRODUCT INTRODUCTION

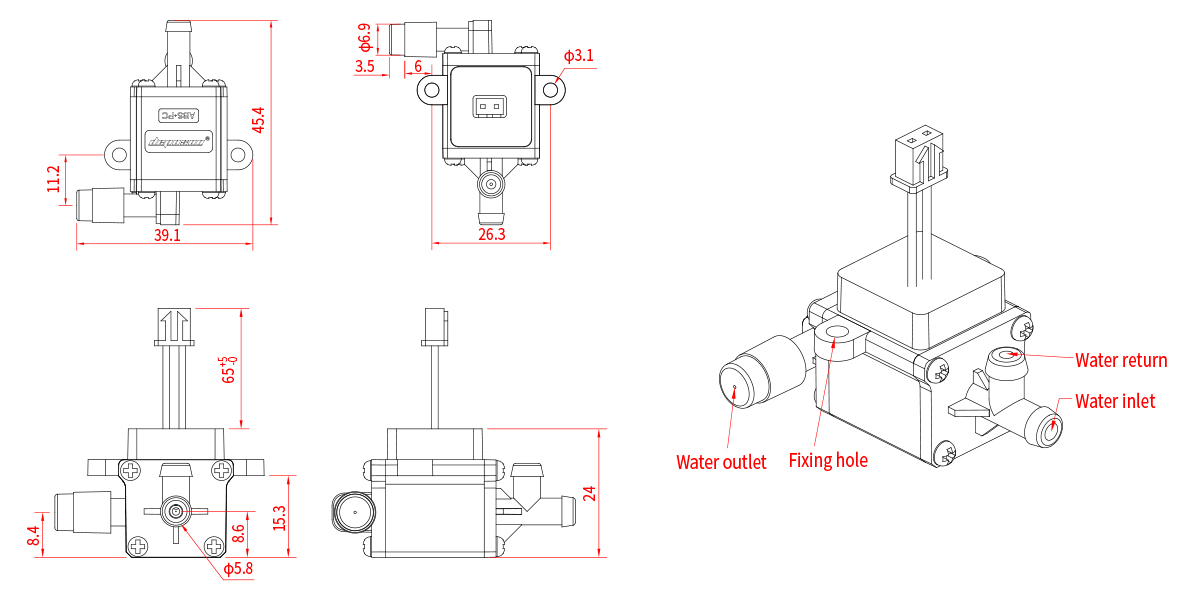

                             DIMENSIONS


W-002A线稿




                             TECHNICAL DATA


Bluphin

Model number:DPS-BP/W-002A

Order numberP002A

Cell dimension

L45.4*W39.1*H24(mm)

Net weight

14.2g±2g

Range of flow rate

60-300mL/min

Power cable spec

AWG24(red & white),L=65mm



Range of ozone   concentration

0.5-2.0ppm

Power plug

XH2.54 2pin plug

Input voltage

DC   8.5-22V

Lack water protector

No

Input current

0.3-1A

Water pressure

0.1-0.4MPa

Power

17W

Max water temperature

40℃(104℉)

Water inlet spec

1/4”,φ6.3mm

Suggested water quality

Clean tap water, Hardness ≤ 250 ppm CaCO3

Water outlet type

Spray outlet

Applicable driving board No.

PCB001、PCB002

Water return hole spec

1/4”,φ6.3mm

Generator fixing method

Fix with screws

Suggested water pipe

1/4” silicone tube,φ6*3mm

Package spec
