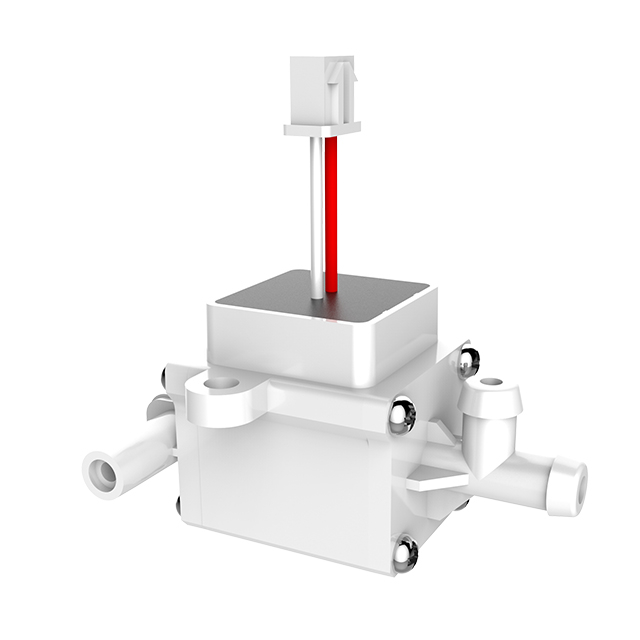

Ozone Generation Cell DPS-BP/W-002B

Product Description

德百顺Bluphin蓝钻豚芯系列产品


蓝钻发生器DPS-BP/W-002B



                PRODUCT INTRODUCTION

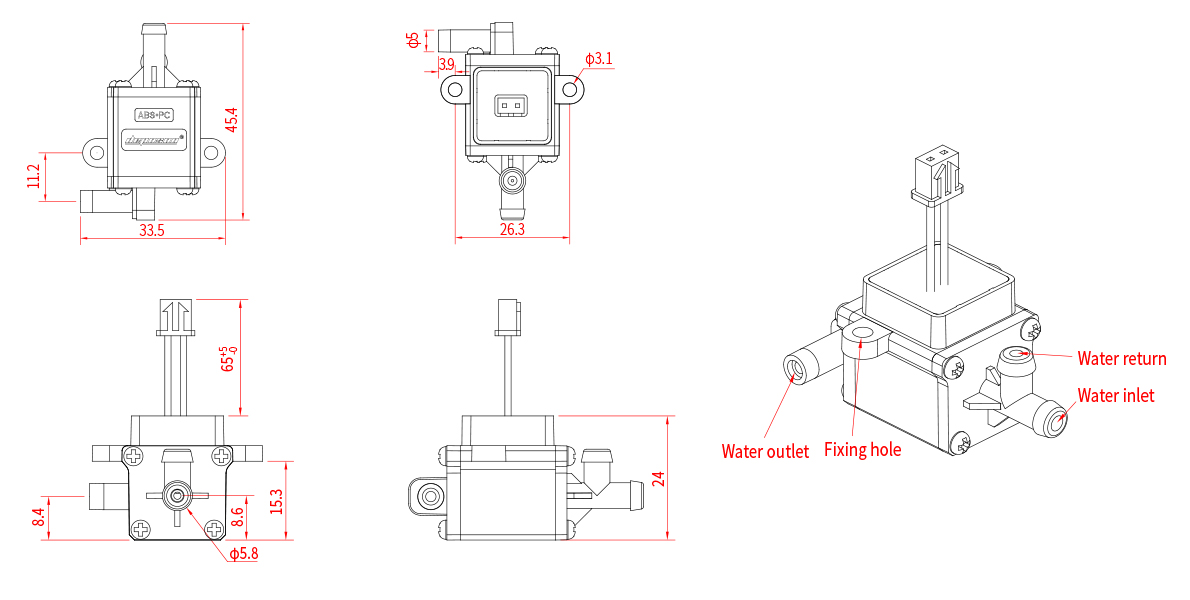

                           DIMENSIONS


W-002B线稿



                        TECHNICAL DATA



Bluphin

Model number:DPS-BP/W-002B

rder numberP002B

Cell dimension

L38*W33.5*H24(mm)

Net weight

14.2g±2g

Range of flow rate

60-300mL/min

Power cable spec

AWG24(red & white),L= 65mm

Range of ozone   concentration

1.0-3.0ppm

Power plug

XH2.54 2pin plug

Input voltage

DC   8.5-22V

Lack water protector

No

Input current

0.3-1A

Water pressure

0.05-0.4MPa

Power

17W

Max water temperature

40℃(104℉)

Water inlet spec

1/4”,φ6.3mm

Suggested water quality

Clean tap water, Hardness ≤ 250 ppm CaCO3

Water outlet type

1/4”,φ6.3mm

Applicable driving board   No.

PCB001、PCB002

Water return hole spec

1/4”,φ6.3mm

Generator fixing method

Fix with screws

Suggested water pipe

1/4”   silicone tube,φ6*3mm

Package spec
